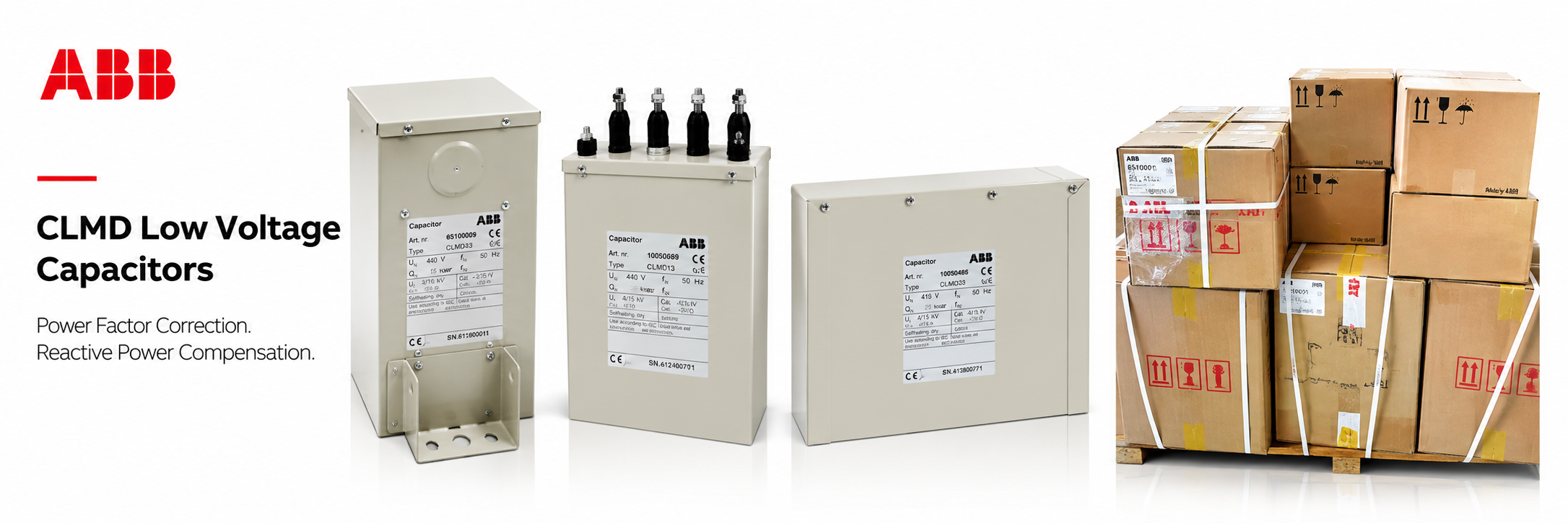

ABB CLMD Low-Voltage Capacitors

Reactive-power compensation

CLMD units are low-voltage power capacitors for power-factor correction, rather than energy meters or harmonic filters by themselves. ABB technical literature describes dry, self-healing metallized-polypropylene construction. The existing references include CLMD13, CLMD33/33S, CLMD43, CLMD53, CLMD63 and CLMD83 designations; dimensions, terminals and ratings must be verified for the full reference.

Ratings must be read together

A capacitor’s kvar output is specified at a stated voltage and frequency. A nominal kvar value alone is insufficient for ordering. Confirm the capacitor rating and the intended network conditions, including whether it will operate with a detuning reactor. Do not transfer an enclosure rating, temperature limit or mounting condition from one CLMD type to all types.

ABB CLMD literature references IEC 60831-1 and IEC 60831-2. Use the document and installation instructions applicable to the exact product and market, including discharge, spacing, ventilation and reconnection requirements.

Information needed for selection

• Network voltage, frequency, phases, required compensation and capacitor-bank step sizes.
• Harmonic measurements, nonlinear loads, resonance assessment and any specified reactor detuning arrangement.
• Capacitor nominal voltage and kvar, switching method, protection and controller arrangement.
• Ambient temperature, ventilation, mounting space, terminals and enclosure requirements.

Detuned compensation requires a coordinated capacitor/reactor design. A capacitor should not be selected solely from the name of an existing bank or an assumed harmonic-filtering benefit.

Model references and quotation

All 104 original model and Vendor Code references are retained. Confirm the current ABB ordering reference and exact technical data before ordering, without inferring lifecycle or replacement status from historical entries. Send the complete reference/code, nameplate photo, quantity and destination, network conditions, required kvar and any reactor or bank details.

Browse Power Quality or Contact. Official basis: ABB power-factor correction technical application paper and ABB regional CLMD catalogue. Apply regional specifications only to the documented product.
