ABB GDA200 electronic residual current blocks are designed for combination with compatible miniature circuit breakers, providing residual current protection together with overload and short-circuit protection. The series offers multiple pole configurations, rated currents and residual current sensitivities for residential, commercial and industrial applications.

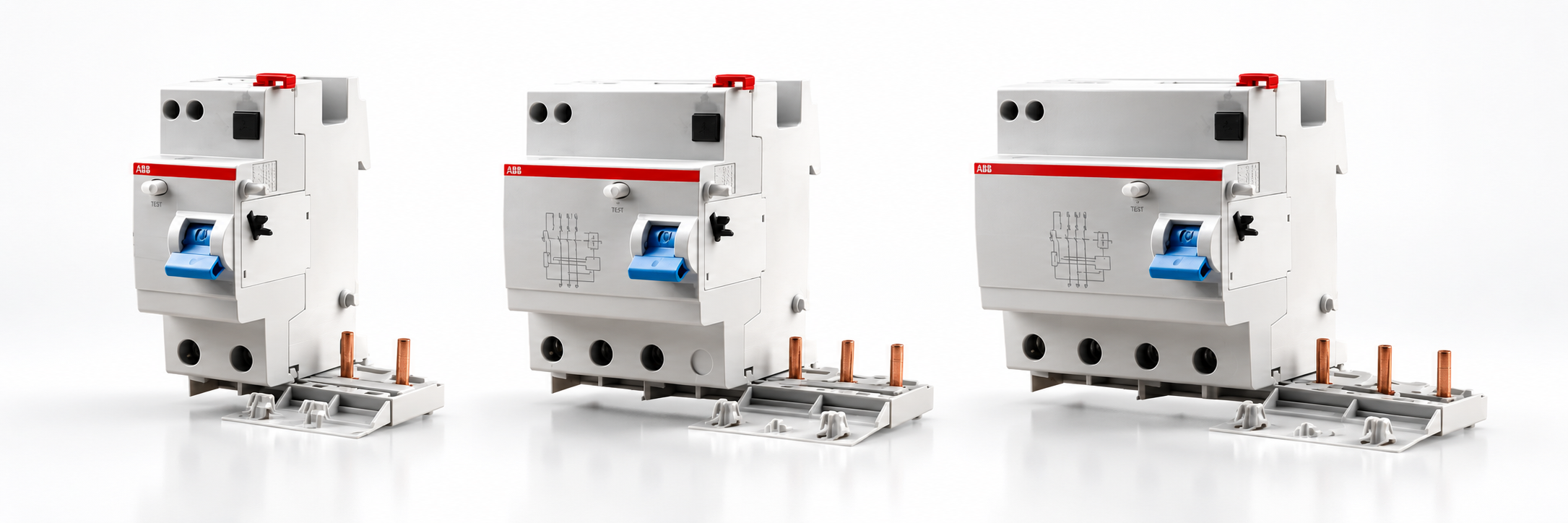

ABB GDA200 Residual Current Blocks
Key Features
| Title | Description |
|---|---|
| Electronic RCD Block | Electronic residual current protection for combination with compatible MCBs. |
| Multiple Configurations | Available in 2P, 3P and 4P versions. |
| Flexible Protection | Multiple residual current types and sensitivities available. |
| Wide Applications | Suitable for residential, commercial and industrial installations. |
Popular Models
GDA202 AC-25/0.03GDA202 A-40/0.03GDA202 A-63/0.03 AP-RGDA203 AC-40/0.03GDA203 A-40/0.03 AP-RGDA204 AC-63/0.03GDA204 A-40/0.1 AP-RGDA204 A S-63/0.3
ABB GDA200 Complete Model List
72 models shown
| Product Model | Series | Poles | Rated Current (A) | Sensitivity (mA) | RCD Type |
|---|---|---|---|---|---|
| GDA202 AC-25/0.03 | GDA202 | 2P | 25 | 30 | AC |
| GDA202 AC-40/0.03 | GDA202 | 2P | 40 | 30 | AC |
| GDA202 AC-63/0.03 | GDA202 | 2P | 63 | 30 | AC |
| GDA202 A-25/0.03 | GDA202 | 2P | 25 | 30 | A |
| GDA202 A-40/0.03 | GDA202 | 2P | 40 | 30 | A |
| GDA202 A-63/0.03 | GDA202 | 2P | 63 | 30 | A |
| GDA202 A-25/0.03 AP-R | GDA202 | 2P | 25 | 30 | A AP-R |
| GDA202 A-40/0.03 AP-R | GDA202 | 2P | 40 | 30 | A AP-R |
| GDA202 A-63/0.03 AP-R | GDA202 | 2P | 63 | 30 | A AP-R |
| GDA202 A-25/0.1 AP-R | GDA202 | 2P | 25 | 100 | A AP-R |
| GDA202 A-40/0.1 AP-R | GDA202 | 2P | 40 | 100 | A AP-R |
| GDA202 A-63/0.1 AP-R | GDA202 | 2P | 63 | 100 | A AP-R |
| GDA202 AC S-25/0.1 | GDA202 | 2P | 25 | 100 | AC S |
| GDA202 AC S-40/0.1 | GDA202 | 2P | 40 | 100 | AC S |
| GDA202 AC S-63/0.1 | GDA202 | 2P | 63 | 100 | AC S |
| GDA202 AC S-25/0.3 | GDA202 | 2P | 25 | 300 | AC S |
| GDA202 AC S-40/0.3 | GDA202 | 2P | 40 | 300 | AC S |
| GDA202 AC S-63/0.3 | GDA202 | 2P | 63 | 300 | AC S |
| GDA202 A S-25/0.1 | GDA202 | 2P | 25 | 100 | A S |
| GDA202 A S-40/0.1 | GDA202 | 2P | 40 | 100 | A S |
| GDA202 A S-63/0.1 | GDA202 | 2P | 63 | 100 | A S |
| GDA202 A S-25/0.3 | GDA202 | 2P | 25 | 300 | A S |
| GDA202 A S-40/0.3 | GDA202 | 2P | 40 | 300 | A S |
| GDA202 A S-63/0.3 | GDA202 | 2P | 63 | 300 | A S |
| GDA203 AC-25/0.03 | GDA203 | 3P | 25 | 30 | AC |
| GDA203 AC-40/0.03 | GDA203 | 3P | 40 | 30 | AC |
| GDA203 AC-63/0.03 | GDA203 | 3P | 63 | 30 | AC |
| GDA203 A-25/0.03 | GDA203 | 3P | 25 | 30 | A |
| GDA203 A-40/0.03 | GDA203 | 3P | 40 | 30 | A |
| GDA203 A-63/0.03 | GDA203 | 3P | 63 | 30 | A |
| GDA203 A-25/0.03 AP-R | GDA203 | 3P | 25 | 30 | A AP-R |
| GDA203 A-40/0.03 AP-R | GDA203 | 3P | 40 | 30 | A AP-R |
| GDA203 A-63/0.03 AP-R | GDA203 | 3P | 63 | 30 | A AP-R |
| GDA203 A-25/0.1 AP-R | GDA203 | 3P | 25 | 100 | A AP-R |
| GDA203 A-40/0.1 AP-R | GDA203 | 3P | 40 | 100 | A AP-R |
| GDA203 A-63/0.1 AP-R | GDA203 | 3P | 63 | 100 | A AP-R |
| GDA203 AC S-25/0.1 | GDA203 | 3P | 25 | 100 | AC S |
| GDA203 AC S-40/0.1 | GDA203 | 3P | 40 | 100 | AC S |
| GDA203 AC S-63/0.1 | GDA203 | 3P | 63 | 100 | AC S |
| GDA203 AC S-25/0.3 | GDA203 | 3P | 25 | 300 | AC S |
| GDA203 AC S-40/0.3 | GDA203 | 3P | 40 | 300 | AC S |
| GDA203 AC S-63/0.3 | GDA203 | 3P | 63 | 300 | AC S |
| GDA203 A S-25/0.1 | GDA203 | 3P | 25 | 100 | A S |
| GDA203 A S-40/0.1 | GDA203 | 3P | 40 | 100 | A S |
| GDA203 A S-63/0.1 | GDA203 | 3P | 63 | 100 | A S |
| GDA203 A S-25/0.3 | GDA203 | 3P | 25 | 300 | A S |
| GDA203 A S-40/0.3 | GDA203 | 3P | 40 | 300 | A S |
| GDA203 A S-63/0.3 | GDA203 | 3P | 63 | 300 | A S |
| GDA204 AC-25/0.03 | GDA204 | 4P | 25 | 30 | AC |
| GDA204 AC-40/0.03 | GDA204 | 4P | 40 | 30 | AC |
| GDA204 AC-63/0.03 | GDA204 | 4P | 63 | 30 | AC |
| GDA204 A-25/0.03 | GDA204 | 4P | 25 | 30 | A |
| GDA204 A-40/0.03 | GDA204 | 4P | 40 | 30 | A |
| GDA204 A-63/0.03 | GDA204 | 4P | 63 | 30 | A |
| GDA204 A-25/0.03 AP-R | GDA204 | 4P | 25 | 30 | A AP-R |
| GDA204 A-40/0.03 AP-R | GDA204 | 4P | 40 | 30 | A AP-R |
| GDA204 A-63/0.03 AP-R | GDA204 | 4P | 63 | 30 | A AP-R |
| GDA204 A-25/0.1 AP-R | GDA204 | 4P | 25 | 100 | A AP-R |
| GDA204 A-40/0.1 AP-R | GDA204 | 4P | 40 | 100 | A AP-R |
| GDA204 A-63/0.1 AP-R | GDA204 | 4P | 63 | 100 | A AP-R |
| GDA204 AC S-25/0.1 | GDA204 | 4P | 25 | 100 | AC S |
| GDA204 AC S-40/0.1 | GDA204 | 4P | 40 | 100 | AC S |
| GDA204 AC S-63/0.1 | GDA204 | 4P | 63 | 100 | AC S |
| GDA204 AC S-25/0.3 | GDA204 | 4P | 25 | 300 | AC S |
| GDA204 AC S-40/0.3 | GDA204 | 4P | 40 | 300 | AC S |
| GDA204 AC S-63/0.3 | GDA204 | 4P | 63 | 300 | AC S |
| GDA204 A S-25/0.1 | GDA204 | 4P | 25 | 100 | A S |
| GDA204 A S-40/0.1 | GDA204 | 4P | 40 | 100 | A S |
| GDA204 A S-63/0.1 | GDA204 | 4P | 63 | 100 | A S |
| GDA204 A S-25/0.3 | GDA204 | 4P | 25 | 300 | A S |
| GDA204 A S-40/0.3 | GDA204 | 4P | 40 | 300 | A S |
| GDA204 A S-63/0.3 | GDA204 | 4P | 63 | 300 | A S |
