ABB GDF200 residual current devices are designed for combination with SF200 and SF200M miniature circuit breakers, providing residual current protection for electrical installations. The series is available in 2P, 3P and 4P configurations with 30mA sensitivity.

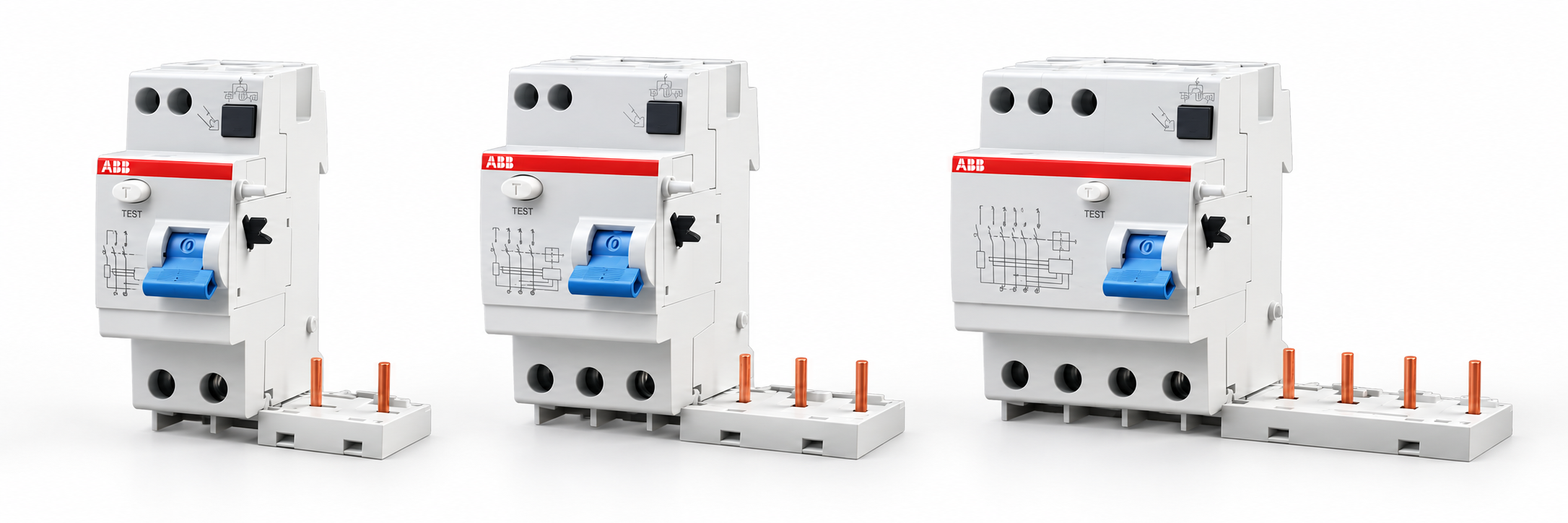

ABB GDF200 Residual Current Devices
Key Features
| Title | Description |
|---|---|
| Residual Current Protection | Provides protection against residual earth fault currents. |
| SF200 Compatibility | Designed for use with SF200 and SF200M miniature circuit breakers. |
| Multiple Poles | Available in 2P, 3P and 4P configurations. |
| 30mA Sensitivity | Type AC residual current protection with 30mA sensitivity. |
Popular Models
GDF202 AC-25/0.03GDF202 AC-40/0.03GDF202 AC-63/0.03GDF203 AC-40/0.03GDF204 AC-40/0.03GDF204 AC-63/0.03
ABB GDF200 Complete Model List
9 models shown
| Product Model | Poles | Rated Current (A) | Sensitivity (mA) | RCD Type | Compatible MCB |
|---|---|---|---|---|---|
| GDF202 AC-25/0.03 | 2P | 25 | 30 | AC | SF200 / SF200M |
| GDF202 AC-40/0.03 | 2P | 40 | 30 | AC | SF200 / SF200M |
| GDF202 AC-63/0.03 | 2P | 63 | 30 | AC | SF200 / SF200M |
| GDF203 AC-25/0.03 | 3P | 25 | 30 | AC | SF200 / SF200M |
| GDF203 AC-40/0.03 | 3P | 40 | 30 | AC | SF200 / SF200M |
| GDF203 AC-63/0.03 | 3P | 63 | 30 | AC | SF200 / SF200M |
| GDF204 AC-25/0.03 | 4P | 25 | 30 | AC | SF200 / SF200M |
| GDF204 AC-40/0.03 | 4P | 40 | 30 | AC | SF200 / SF200M |
| GDF204 AC-63/0.03 | 4P | 63 | 30 | AC | SF200 / SF200M |
