ABB GS200 Series RCBOs combine residual current protection with overload and short-circuit protection in a compact device. The series is designed to provide reliable protection for residential, commercial and light industrial electrical installations, with different rated currents and residual current sensitivities available for various circuit requirements.

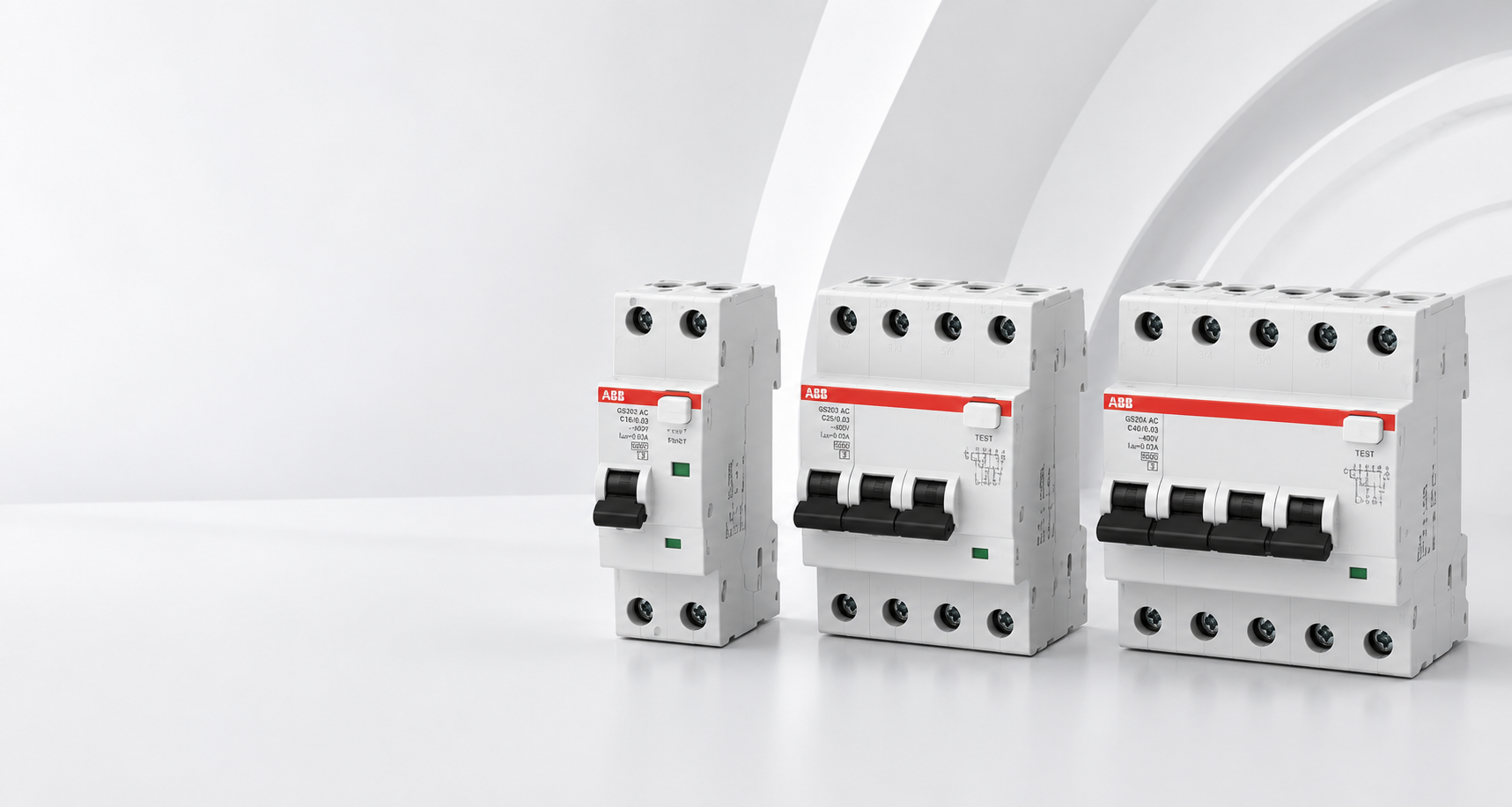

ABB GS200 Series RCBO
Key Features
| Combined Protection | Provides residual current, overload and short-circuit protection in a single device. |
| Compact Design | Space-saving construction suitable for distribution boards and electrical panels. |
| Multiple Ratings | Available in different rated currents and residual current sensitivities for various applications. |
| Wide Applications | Suitable for residential, commercial and light industrial electrical installations |
Popular Models
- GS202 AC-C16/0.03
- GS202 AC-C32/0.03
- GS202 A-C16/0.03
- GS202 A-C32/0.03
- GS203 AC-C32/0.03
- GS204 AC-C32/0.03
- GS204 A-C40/0.03
- GS204 A-C63/0.03 AP-R
ABB GS200 Series Complete Model List
345 models shown
| Product Model | Poles | Rated Current (A) | Sensitivity | Trip Curve | RCD Type | Breaking Capacity |
|---|---|---|---|---|---|---|
| GS202 AC-B6/0.03 | 2 | 6 | 30 mA | B | AC | 6 kA |
| GS202 AC-B10/0.03 | 2 | 10 | 30 mA | B | AC | 6 kA |
| GS202 AC-B13/0.03 | 2 | 13 | 30 mA | B | AC | 6 kA |
| GS202 AC-B16/0.03 | 2 | 16 | 30 mA | B | AC | 6 kA |
| GS202 AC-B20/0.03 | 2 | 20 | 30 mA | B | AC | 6 kA |
| GS202 AC-B25/0.03 | 2 | 25 | 30 mA | B | AC | 6 kA |
| GS202 AC-B32/0.03 | 2 | 32 | 30 mA | B | AC | 6 kA |
| GS202 AC-B40/0.03 | 2 | 40 | 30 mA | B | AC | 6 kA |
| GS202 AC-B50/0.03 | 2 | 50 | 30 mA | B | AC | 6 kA |
| GS202 AC-B63/0.03 | 2 | 63 | 30 mA | B | AC | 6 kA |
| GS203 AC-B6/0.03 | 3 | 6 | 30 mA | B | AC | 6 kA |
| GS203 AC-B10/0.03 | 3 | 10 | 30 mA | B | AC | 6 kA |
| GS203 AC-B13/0.03 | 3 | 13 | 30 mA | B | AC | 6 kA |
| GS203 AC-B16/0.03 | 3 | 16 | 30 mA | B | AC | 6 kA |
| GS203 AC-B20/0.03 | 3 | 20 | 30 mA | B | AC | 6 kA |
| GS203 AC-B25/0.03 | 3 | 25 | 30 mA | B | AC | 6 kA |
| GS203 AC-B32/0.03 | 3 | 32 | 30 mA | B | AC | 6 kA |
| GS203 AC-B40/0.03 | 3 | 40 | 30 mA | B | AC | 6 kA |
| GS203 AC-B50/0.03 | 3 | 50 | 30 mA | B | AC | 6 kA |
| GS203 AC-B63/0.03 | 3 | 63 | 30 mA | B | AC | 6 kA |
| GS204 AC-B6/0.03 | 4 | 6 | 30 mA | B | AC | 6 kA |
| GS204 AC-B10/0.03 | 4 | 10 | 30 mA | B | AC | 6 kA |
| GS204 AC-B13/0.03 | 4 | 13 | 30 mA | B | AC | 6 kA |
| GS204 AC-B16/0.03 | 4 | 16 | 30 mA | B | AC | 6 kA |
| GS204 AC-B20/0.03 | 4 | 20 | 30 mA | B | AC | 6 kA |
| GS204 AC-B25/0.03 | 4 | 25 | 30 mA | B | AC | 6 kA |
| GS204 AC-B32/0.03 | 4 | 32 | 30 mA | B | AC | 6 kA |
| GS204 AC-B40/0.03 | 4 | 40 | 30 mA | B | AC | 6 kA |
| GS204 AC-B50/0.03 | 4 | 50 | 30 mA | B | AC | 6 kA |
| GS204 AC-B63/0.03 | 4 | 63 | 30 mA | B | AC | 6 kA |
| GS202 A-B6/0.03 | 2 | 6 | 30 mA | B | A | 6 kA |
| GS202 A-B10/0.03 | 2 | 10 | 30 mA | B | A | 6 kA |
| GS202 A-B13/0.03 | 2 | 13 | 30 mA | B | A | 6 kA |
| GS202 A-B16/0.03 | 2 | 16 | 30 mA | B | A | 6 kA |
| GS202 A-B20/0.03 | 2 | 20 | 30 mA | B | A | 6 kA |
| GS202 A-B25/0.03 | 2 | 25 | 30 mA | B | A | 6 kA |
| GS202 A-B32/0.03 | 2 | 32 | 30 mA | B | A | 6 kA |
| GS202 A-B40/0.03 | 2 | 40 | 30 mA | B | A | 6 kA |
| GS202 A-B50/0.03 | 2 | 50 | 30 mA | B | A | 6 kA |
| GS202 A-B63/0.03 | 2 | 63 | 30 mA | B | A | 6 kA |
| GS203 A-B6/0.03 | 3 | 6 | 30 mA | B | A | 6 kA |
| GS203 A-B10/0.03 | 3 | 10 | 30 mA | B | A | 6 kA |
| GS203 A-B13/0.03 | 3 | 13 | 30 mA | B | A | 6 kA |
| GS203 A-B16/0.03 | 3 | 16 | 30 mA | B | A | 6 kA |
| GS203 A-B20/0.03 | 3 | 20 | 30 mA | B | A | 6 kA |
| GS203 A-B25/0.03 | 3 | 25 | 30 mA | B | A | 6 kA |
| GS203 A-B32/0.03 | 3 | 32 | 30 mA | B | A | 6 kA |
| GS203 A-B40/0.03 | 3 | 40 | 30 mA | B | A | 6 kA |
| GS203 A-B50/0.03 | 3 | 50 | 30 mA | B | A | 6 kA |
| GS203 A-B63/0.03 | 3 | 63 | 30 mA | B | A | 6 kA |
| GS204 A-B6/0.03 | 4 | 6 | 30 mA | B | A | 6 kA |
| GS204 A-B10/0.03 | 4 | 10 | 30 mA | B | A | 6 kA |
| GS204 A-B13/0.03 | 4 | 13 | 30 mA | B | A | 6 kA |
| GS204 A-B16/0.03 | 4 | 16 | 30 mA | B | A | 6 kA |
| GS204 A-B20/0.03 | 4 | 20 | 30 mA | B | A | 6 kA |
| GS204 A-B25/0.03 | 4 | 25 | 30 mA | B | A | 6 kA |
| GS204 A-B32/0.03 | 4 | 32 | 30 mA | B | A | 6 kA |
| GS204 A-B40/0.03 | 4 | 40 | 30 mA | B | A | 6 kA |
| GS204 A-B50/0.03 | 4 | 50 | 30 mA | B | A | 6 kA |
| GS204 A-B63/0.03 | 4 | 63 | 30 mA | B | A | 6 kA |
| GS202 A-B6/0.03 AP-R | 2 | 6 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B10/0.03 AP-R | 2 | 10 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B13/0.03 AP-R | 2 | 13 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B16/0.03 AP-R | 2 | 16 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B20/0.03 AP-R | 2 | 20 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B25/0.03 AP-R | 2 | 25 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B32/0.03 AP-R | 2 | 32 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B40/0.03 AP-R | 2 | 40 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B50/0.03 AP-R | 2 | 50 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B63/0.03 AP-R | 2 | 63 | 30 mA | B | A AP-R | 6 kA |
| GS202 A-B6/0.1 AP-R | 2 | 6 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B10/0.1 AP-R | 2 | 10 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B13/0.1 AP-R | 2 | 13 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B16/0.1 AP-R | 2 | 16 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B20/0.1 AP-R | 2 | 20 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B25/0.1 AP-R | 2 | 25 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B32/0.1 AP-R | 2 | 32 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B40/0.1 AP-R | 2 | 40 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B50/0.1 AP-R | 2 | 50 | 100 mA | B | A AP-R | 6 kA |
| GS202 A-B63/0.1 AP-R | 2 | 63 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B6/0.03 AP-R | 3 | 6 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B10/0.03 AP-R | 3 | 10 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B13/0.03 AP-R | 3 | 13 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B16/0.03 AP-R | 3 | 16 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B20/0.03 AP-R | 3 | 20 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B25/0.03 AP-R | 3 | 25 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B32/0.03 AP-R | 3 | 32 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B40/0.03 AP-R | 3 | 40 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B50/0.03 AP-R | 3 | 50 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B63/0.03 AP-R | 3 | 63 | 30 mA | B | A AP-R | 6 kA |
| GS203 A-B6/0.1 AP-R | 3 | 6 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B10/0.1 AP-R | 3 | 10 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B13/0.1 AP-R | 3 | 13 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B16/0.1 AP-R | 3 | 16 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B20/0.1 AP-R | 3 | 20 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B25/0.1 AP-R | 3 | 25 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B32/0.1 AP-R | 3 | 32 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B40/0.1 AP-R | 3 | 40 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B50/0.1 AP-R | 3 | 50 | 100 mA | B | A AP-R | 6 kA |
| GS203 A-B63/0.1 AP-R | 3 | 63 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B6/0.03 AP-R | 4 | 6 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B10/0.03 AP-R | 4 | 10 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B13/0.03 AP-R | 4 | 13 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B16/0.03 AP-R | 4 | 16 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B20/0.03 AP-R | 4 | 20 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B25/0.03 AP-R | 4 | 25 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B32/0.03 AP-R | 4 | 32 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B40/0.03 AP-R | 4 | 40 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B50/0.03 AP-R | 4 | 50 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B63/0.03 AP-R | 4 | 63 | 30 mA | B | A AP-R | 6 kA |
| GS204 A-B6/0.1 AP-R | 4 | 6 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B10/0.1 AP-R | 4 | 10 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B13/0.1 AP-R | 4 | 13 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B16/0.1 AP-R | 4 | 16 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B20/0.1 AP-R | 4 | 20 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B25/0.1 AP-R | 4 | 25 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B32/0.1 AP-R | 4 | 32 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B40/0.1 AP-R | 4 | 40 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B50/0.1 AP-R | 4 | 50 | 100 mA | B | A AP-R | 6 kA |
| GS204 A-B63/0.1 AP-R | 4 | 63 | 100 mA | B | A AP-R | 6 kA |
| GS202 A S-B25/0.1 | 2 | 25 | 100 mA | B | A S | 6 kA |
| GS202 A S-B32/0.1 | 2 | 32 | 100 mA | B | A S | 6 kA |
| GS202 A S-B40/0.1 | 2 | 40 | 100 mA | B | A S | 6 kA |
| GS202 A S-B50/0.1 | 2 | 50 | 100 mA | B | A S | 6 kA |
| GS202 A S-B63/0.1 | 2 | 63 | 100 mA | B | A S | 6 kA |
| GS202 A S-B25/0.3 | 2 | 25 | 300 mA | B | A S | 6 kA |
| GS202 A S-B32/0.3 | 2 | 32 | 300 mA | B | A S | 6 kA |
| GS202 A S-B40/0.3 | 2 | 40 | 300 mA | B | A S | 6 kA |
| GS202 A S-B50/0.3 | 2 | 50 | 300 mA | B | A S | 6 kA |
| GS202 A S-B63/0.3 | 2 | 63 | 300 mA | B | A S | 6 kA |
| GS203 A S-B25/0.1 | 3 | 25 | 100 mA | B | A S | 6 kA |
| GS203 A S-B32/0.1 | 3 | 32 | 100 mA | B | A S | 6 kA |
| GS203 A S-B40/0.1 | 3 | 40 | 100 mA | B | A S | 6 kA |
| GS203 A S-B50/0.1 | 3 | 50 | 100 mA | B | A S | 6 kA |
| GS203 A S-B63/0.1 | 3 | 63 | 100 mA | B | A S | 6 kA |
| GS203 A S-B25/0.3 | 3 | 25 | 300 mA | B | A S | 6 kA |
| GS203 A S-B32/0.3 | 3 | 32 | 300 mA | B | A S | 6 kA |
| GS203 A S-B40/0.3 | 3 | 40 | 300 mA | B | A S | 6 kA |
| GS203 A S-B50/0.3 | 3 | 50 | 300 mA | B | A S | 6 kA |
| GS203 A S-B63/0.3 | 3 | 63 | 300 mA | B | A S | 6 kA |
| GS204 A S-B25/0.1 | 4 | 25 | 100 mA | B | A S | 6 kA |
| GS204 A S-B32/0.1 | 4 | 32 | 100 mA | B | A S | 6 kA |
| GS204 A S-B40/0.1 | 4 | 40 | 100 mA | B | A S | 6 kA |
| GS204 A S-B50/0.1 | 4 | 50 | 100 mA | B | A S | 6 kA |
| GS204 A S-B63/0.1 | 4 | 63 | 100 mA | B | A S | 6 kA |
| GS204 A S-B25/0.3 | 4 | 25 | 300 mA | B | A S | 6 kA |
| GS204 A S-B32/0.3 | 4 | 32 | 300 mA | B | A S | 6 kA |
| GS204 A S-B40/0.3 | 4 | 40 | 300 mA | B | A S | 6 kA |
| GS204 A S-B50/0.3 | 4 | 50 | 300 mA | B | A S | 6 kA |
| GS204 A S-B63/0.3 | 4 | 63 | 300 mA | B | A S | 6 kA |
| GS202 AC-C6/0.03 | 2 | 6 | 30 mA | C | AC | 6 kA |
| GS202 AC-C8/0.03 | 2 | 8 | 30 mA | C | AC | 6 kA |
| GS202 AC-C10/0.03 | 2 | 10 | 30 mA | C | AC | 6 kA |
| GS202 AC-C13/0.03 | 2 | 13 | 30 mA | C | AC | 6 kA |
| GS202 AC-C16/0.03 | 2 | 16 | 30 mA | C | AC | 6 kA |
| GS202 AC-C20/0.03 | 2 | 20 | 30 mA | C | AC | 6 kA |
| GS202 AC-C25/0.03 | 2 | 25 | 30 mA | C | AC | 6 kA |
| GS202 AC-C32/0.03 | 2 | 32 | 30 mA | C | AC | 6 kA |
| GS202 AC-C40/0.03 | 2 | 40 | 30 mA | C | AC | 6 kA |
| GS202 AC-C50/0.03 | 2 | 50 | 30 mA | C | AC | 6 kA |
| GS202 AC-C63/0.03 | 2 | 63 | 30 mA | C | AC | 6 kA |
| GS203 AC-C6/0.03 | 3 | 6 | 30 mA | C | AC | 6 kA |
| GS203 AC-C8/0.03 | 3 | 8 | 30 mA | C | AC | 6 kA |
| GS203 AC-C10/0.03 | 3 | 10 | 30 mA | C | AC | 6 kA |
| GS203 AC-C13/0.03 | 3 | 13 | 30 mA | C | AC | 6 kA |
| GS203 AC-C16/0.03 | 3 | 16 | 30 mA | C | AC | 6 kA |
| GS203 AC-C20/0.03 | 3 | 20 | 30 mA | C | AC | 6 kA |
| GS203 AC-C25/0.03 | 3 | 25 | 30 mA | C | AC | 6 kA |
| GS203 AC-C32/0.03 | 3 | 32 | 30 mA | C | AC | 6 kA |
| GS203 AC-C40/0.03 | 3 | 40 | 30 mA | C | AC | 6 kA |
| GS203 AC-C50/0.03 | 3 | 50 | 30 mA | C | AC | 6 kA |
| GS203 AC-C63/0.03 | 3 | 63 | 30 mA | C | AC | 6 kA |
| GS204 AC-C6/0.03 | 4 | 6 | 30 mA | C | AC | 6 kA |
| GS204 AC-C8/0.03 | 4 | 8 | 30 mA | C | AC | 6 kA |
| GS204 AC-C10/0.03 | 4 | 10 | 30 mA | C | AC | 6 kA |
| GS204 AC-C13/0.03 | 4 | 13 | 30 mA | C | AC | 6 kA |
| GS204 AC-C16/0.03 | 4 | 16 | 30 mA | C | AC | 6 kA |
| GS204 AC-C20/0.03 | 4 | 20 | 30 mA | C | AC | 6 kA |
| GS204 AC-C25/0.03 | 4 | 25 | 30 mA | C | AC | 6 kA |
| GS204 AC-C32/0.03 | 4 | 32 | 30 mA | C | AC | 6 kA |
| GS204 AC-C40/0.03 | 4 | 40 | 30 mA | C | AC | 6 kA |
| GS204 AC-C50/0.03 | 4 | 50 | 30 mA | C | AC | 6 kA |
| GS204 AC-C63/0.03 | 4 | 63 | 30 mA | C | AC | 6 kA |
| GS202 A-C6/0.03 | 2 | 6 | 30 mA | C | A | 6 kA |
| GS202 A-C8/0.03 | 2 | 8 | 30 mA | C | A | 6 kA |
| GS202 A-C10/0.03 | 2 | 10 | 30 mA | C | A | 6 kA |
| GS202 A-C13/0.03 | 2 | 13 | 30 mA | C | A | 6 kA |
| GS202 A-C16/0.03 | 2 | 16 | 30 mA | C | A | 6 kA |
| GS202 A-C20/0.03 | 2 | 20 | 30 mA | C | A | 6 kA |
| GS202 A-C25/0.03 | 2 | 25 | 30 mA | C | A | 6 kA |
| GS202 A-C32/0.03 | 2 | 32 | 30 mA | C | A | 6 kA |
| GS202 A-C40/0.03 | 2 | 40 | 30 mA | C | A | 6 kA |
| GS202 A-C50/0.03 | 2 | 50 | 30 mA | C | A | 6 kA |
| GS202 A-C63/0.03 | 2 | 63 | 30 mA | C | A | 6 kA |
| GS203 A-C6/0.03 | 3 | 6 | 30 mA | C | A | 6 kA |
| GS203 A-C8/0.03 | 3 | 8 | 30 mA | C | A | 6 kA |
| GS203 A-C10/0.03 | 3 | 10 | 30 mA | C | A | 6 kA |
| GS203 A-C13/0.03 | 3 | 13 | 30 mA | C | A | 6 kA |
| GS203 A-C16/0.03 | 3 | 16 | 30 mA | C | A | 6 kA |
| GS203 A-C20/0.03 | 3 | 20 | 30 mA | C | A | 6 kA |
| GS203 A-C25/0.03 | 3 | 25 | 30 mA | C | A | 6 kA |
| GS203 A-C32/0.03 | 3 | 32 | 30 mA | C | A | 6 kA |
| GS203 A-C40/0.03 | 3 | 40 | 30 mA | C | A | 6 kA |
| GS203 A-C50/0.03 | 3 | 50 | 30 mA | C | A | 6 kA |
| GS203 A-C63/0.03 | 3 | 63 | 30 mA | C | A | 6 kA |
| GS204 A-C6/0.03 | 4 | 6 | 30 mA | C | A | 6 kA |
| GS204 A-C8/0.03 | 4 | 8 | 30 mA | C | A | 6 kA |
| GS204 A-C10/0.03 | 4 | 10 | 30 mA | C | A | 6 kA |
| GS204 A-C13/0.03 | 4 | 13 | 30 mA | C | A | 6 kA |
| GS204 A-C16/0.03 | 4 | 16 | 30 mA | C | A | 6 kA |
| GS204 A-C20/0.03 | 4 | 20 | 30 mA | C | A | 6 kA |
| GS204 A-C25/0.03 | 4 | 25 | 30 mA | C | A | 6 kA |
| GS204 A-C32/0.03 | 4 | 32 | 30 mA | C | A | 6 kA |
| GS204 A-C40/0.03 | 4 | 40 | 30 mA | C | A | 6 kA |
| GS204 A-C50/0.03 | 4 | 50 | 30 mA | C | A | 6 kA |
| GS204 A-C63/0.03 | 4 | 63 | 30 mA | C | A | 6 kA |
| GS202 A-C6/0.03 AP-R | 2 | 6 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C8/0.03 AP-R | 2 | 8 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C10/0.03 AP-R | 2 | 10 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C13/0.03 AP-R | 2 | 13 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C16/0.03 AP-R | 2 | 16 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C20/0.03 AP-R | 2 | 20 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C25/0.03 AP-R | 2 | 25 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C32/0.03 AP-R | 2 | 32 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C40/0.03 AP-R | 2 | 40 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C50/0.03 AP-R | 2 | 50 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C63/0.03 AP-R | 2 | 63 | 30 mA | C | A AP-R | 6 kA |
| GS202 A-C6/0.1 AP-R | 2 | 6 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C8/0.1 AP-R | 2 | 8 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C10/0.1 AP-R | 2 | 10 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C13/0.1 AP-R | 2 | 13 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C16/0.1 AP-R | 2 | 16 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C20/0.1 AP-R | 2 | 20 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C25/0.1 AP-R | 2 | 25 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C32/0.1 AP-R | 2 | 32 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C40/0.1 AP-R | 2 | 40 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C50/0.1 AP-R | 2 | 50 | 100 mA | C | A AP-R | 6 kA |
| GS202 A-C63/0.1 AP-R | 2 | 63 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C6/0.03 AP-R | 3 | 6 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C8/0.03 AP-R | 3 | 8 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C10/0.03 AP-R | 3 | 10 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C13/0.03 AP-R | 3 | 13 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C16/0.03 AP-R | 3 | 16 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C20/0.03 AP-R | 3 | 20 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C25/0.03 AP-R | 3 | 25 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C32/0.03 AP-R | 3 | 32 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C40/0.03 AP-R | 3 | 40 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C50/0.03 AP-R | 3 | 50 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C63/0.03 AP-R | 3 | 63 | 30 mA | C | A AP-R | 6 kA |
| GS203 A-C6/0.1 AP-R | 3 | 6 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C8/0.1 AP-R | 3 | 8 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C10/0.1 AP-R | 3 | 10 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C13/0.1 AP-R | 3 | 13 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C16/0.1 AP-R | 3 | 16 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C20/0.1 AP-R | 3 | 20 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C25/0.1 AP-R | 3 | 25 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C32/0.1 AP-R | 3 | 32 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C40/0.1 AP-R | 3 | 40 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C50/0.1 AP-R | 3 | 50 | 100 mA | C | A AP-R | 6 kA |
| GS203 A-C63/0.1 AP-R | 3 | 63 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C6/0.03 AP-R | 4 | 6 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C8/0.03 AP-R | 4 | 8 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C10/0.03 AP-R | 4 | 10 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C13/0.03 AP-R | 4 | 13 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C16/0.03 AP-R | 4 | 16 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C20/0.03 AP-R | 4 | 20 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C25/0.03 AP-R | 4 | 25 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C32/0.03 AP-R | 4 | 32 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C40/0.03 AP-R | 4 | 40 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C50/0.03 AP-R | 4 | 50 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C63/0.03 AP-R | 4 | 63 | 30 mA | C | A AP-R | 6 kA |
| GS204 A-C6/0.1 AP-R | 4 | 6 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C8/0.1 AP-R | 4 | 8 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C10/0.1 AP-R | 4 | 10 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C13/0.1 AP-R | 4 | 13 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C16/0.1 AP-R | 4 | 16 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C20/0.1 AP-R | 4 | 20 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C25/0.1 AP-R | 4 | 25 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C32/0.1 AP-R | 4 | 32 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C40/0.1 AP-R | 4 | 40 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C50/0.1 AP-R | 4 | 50 | 100 mA | C | A AP-R | 6 kA |
| GS204 A-C63/0.1 AP-R | 4 | 63 | 100 mA | C | A AP-R | 6 kA |
| GS202 A S-C25/0.1 | 2 | 25 | 100 mA | C | A S | 6 kA |
| GS202 A S-C32/0.1 | 2 | 32 | 100 mA | C | A S | 6 kA |
| GS202 A S-C40/0.1 | 2 | 40 | 100 mA | C | A S | 6 kA |
| GS202 A S-C50/0.1 | 2 | 50 | 100 mA | C | A S | 6 kA |
| GS202 A S-C63/0.1 | 2 | 63 | 100 mA | C | A S | 6 kA |
| GS202 A S-C25/0.3 | 2 | 25 | 300 mA | C | A S | 6 kA |
| GS202 A S-C32/0.3 | 2 | 32 | 300 mA | C | A S | 6 kA |
| GS202 A S-C40/0.3 | 2 | 40 | 300 mA | C | A S | 6 kA |
| GS202 A S-C50/0.3 | 2 | 50 | 300 mA | C | A S | 6 kA |
| GS202 A S-C63/0.3 | 2 | 63 | 300 mA | C | A S | 6 kA |
| GS203 A S-C25/0.1 | 3 | 25 | 100 mA | C | A S | 6 kA |
| GS203 A S-C32/0.1 | 3 | 32 | 100 mA | C | A S | 6 kA |
| GS203 A S-C40/0.1 | 3 | 40 | 100 mA | C | A S | 6 kA |
| GS203 A S-C50/0.1 | 3 | 50 | 100 mA | C | A S | 6 kA |
| GS203 A S-C63/0.1 | 3 | 63 | 100 mA | C | A S | 6 kA |
| GS203 A S-C25/0.3 | 3 | 25 | 300 mA | C | A S | 6 kA |
| GS203 A S-C32/0.3 | 3 | 32 | 300 mA | C | A S | 6 kA |
| GS203 A S-C40/0.3 | 3 | 40 | 300 mA | C | A S | 6 kA |
| GS203 A S-C50/0.3 | 3 | 50 | 300 mA | C | A S | 6 kA |
| GS203 A S-C63/0.3 | 3 | 63 | 300 mA | C | A S | 6 kA |
| GS204 A S-C25/0.1 | 4 | 25 | 100 mA | C | A S | 6 kA |
| GS204 A S-C32/0.1 | 4 | 32 | 100 mA | C | A S | 6 kA |
| GS204 A S-C40/0.1 | 4 | 40 | 100 mA | C | A S | 6 kA |
| GS204 A S-C50/0.1 | 4 | 50 | 100 mA | C | A S | 6 kA |
| GS204 A S-C63/0.1 | 4 | 63 | 100 mA | C | A S | 6 kA |
| GS204 A S-C25/0.3 | 4 | 25 | 300 mA | C | A S | 6 kA |
| GS204 A S-C32/0.3 | 4 | 32 | 300 mA | C | A S | 6 kA |
| GS204 A S-C40/0.3 | 4 | 40 | 300 mA | C | A S | 6 kA |
| GS204 A S-C50/0.3 | 4 | 50 | 300 mA | C | A S | 6 kA |
| GS204 A S-C63/0.3 | 4 | 63 | 300 mA | C | A S | 6 kA |
| GS202 AC-D6/0.03 | 2 | 6 | 30 mA | D | AC | 6 kA |
| GS202 AC-D8/0.03 | 2 | 8 | 30 mA | D | AC | 6 kA |
| GS202 AC-D10/0.03 | 2 | 10 | 30 mA | D | AC | 6 kA |
| GS202 AC-D13/0.03 | 2 | 13 | 30 mA | D | AC | 6 kA |
| GS202 AC-D16/0.03 | 2 | 16 | 30 mA | D | AC | 6 kA |
| GS202 AC-D20/0.03 | 2 | 20 | 30 mA | D | AC | 6 kA |
| GS202 AC-D25/0.03 | 2 | 25 | 30 mA | D | AC | 6 kA |
| GS202 AC-D32/0.03 | 2 | 32 | 30 mA | D | AC | 6 kA |
| GS202 AC-D40/0.03 | 2 | 40 | 30 mA | D | AC | 6 kA |
| GS202 AC-D50/0.03 | 2 | 50 | 30 mA | D | AC | 6 kA |
| GS202 AC-D63/0.03 | 2 | 63 | 30 mA | D | AC | 6 kA |
| GS203 AC-D6/0.03 | 3 | 6 | 30 mA | D | AC | 6 kA |
| GS203 AC-D8/0.03 | 3 | 8 | 30 mA | D | AC | 6 kA |
| GS203 AC-D10/0.03 | 3 | 10 | 30 mA | D | AC | 6 kA |
| GS203 AC-D13/0.03 | 3 | 13 | 30 mA | D | AC | 6 kA |
| GS203 AC-D16/0.03 | 3 | 16 | 30 mA | D | AC | 6 kA |
| GS203 AC-D20/0.03 | 3 | 20 | 30 mA | D | AC | 6 kA |
| GS203 AC-D25/0.03 | 3 | 25 | 30 mA | D | AC | 6 kA |
| GS203 AC-D32/0.03 | 3 | 32 | 30 mA | D | AC | 6 kA |
| GS203 AC-D40/0.03 | 3 | 40 | 30 mA | D | AC | 6 kA |
| GS203 AC-D50/0.03 | 3 | 50 | 30 mA | D | AC | 6 kA |
| GS203 AC-D63/0.03 | 3 | 63 | 30 mA | D | AC | 6 kA |
| GS204 AC-D6/0.03 | 4 | 6 | 30 mA | D | AC | 6 kA |
| GS204 AC-D8/0.03 | 4 | 8 | 30 mA | D | AC | 6 kA |
| GS204 AC-D10/0.03 | 4 | 10 | 30 mA | D | AC | 6 kA |
| GS204 AC-D13/0.03 | 4 | 13 | 30 mA | D | AC | 6 kA |
| GS204 AC-D16/0.03 | 4 | 16 | 30 mA | D | AC | 6 kA |
| GS204 AC-D20/0.03 | 4 | 20 | 30 mA | D | AC | 6 kA |
| GS204 AC-D25/0.03 | 4 | 25 | 30 mA | D | AC | 6 kA |
| GS204 AC-D32/0.03 | 4 | 32 | 30 mA | D | AC | 6 kA |
| GS204 AC-D40/0.03 | 4 | 40 | 30 mA | D | AC | 6 kA |
| GS204 AC-D50/0.03 | 4 | 50 | 30 mA | D | AC | 6 kA |
| GS204 AC-D63/0.03 | 4 | 63 | 30 mA | D | AC | 6 kA |
