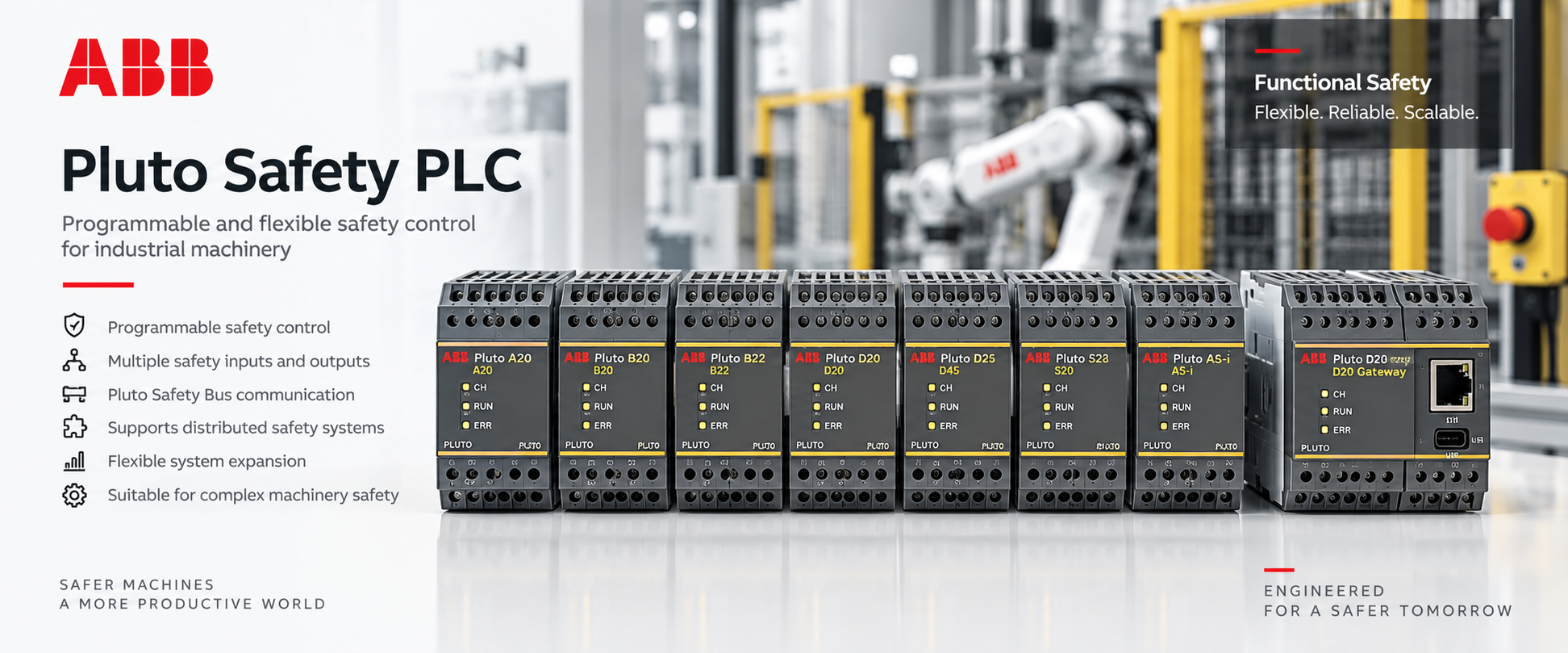

ABB Pluto Programmable Safety Controllers

Programmable machine-safety control

Pluto monitors safety devices and executes configured safety logic for machine applications. ABB documents programming through Pluto Manager, with inputs and outputs that depend on the selected controller. A gateway is a communication component and must not be treated as a controller with identical safety I/O.

Standalone and networked versions

The ABB catalogue distinguishes standalone S20/S46 from versions with Pluto safety-bus functionality. The existing table includes Pluto S20 v2 and other controller references; do not assume every Pluto supports the same bus, I/O, analogue or speed-monitoring functions. DYNlink input arrangements and connected-device limits must follow the exact manual.

Design and selection conditions

• Define each safety function and the required PL/SIL through the machine risk assessment.
• List connected devices and signal types, including contacts, OSSD, DYNlink, analogue or encoder inputs where applicable.
• Confirm I/O quantity, safe outputs, output loads, control supply and feedback/reset requirements.
• Specify standalone or networked architecture, communications/gateway requirements, program version and validated response-time requirements.
• Check installation, wiring, diagnostics and environmental conditions using the exact controller documentation.

Component capability does not by itself establish the achieved safety performance of a complete machine. EN ISO 13849-1 or IEC 62061 assessment, application design and validation must cover the complete safety function.

References and quotation

All 13 original model and Vendor Code entries remain available. No compatibility, migration or lifecycle claim is assigned to historical versions. Send the full model/code, quantity and destination, supply and I/O requirements, connected-device list and required architecture. For existing systems, include label photos, hardware/program version and connection details.

Browse Safety Products, Vital and Tina or Contact. Official basis: ABB Safety Products catalogue, Pluto section. The existing PDF remains available below.
